PLASTIC MAP COMPASS WITH STRAP SIZE:
70 X 48 X 9MM
N.W.: 15G
BLISTER-CARDED
1 DOZ/INNER BOX
24 DOZ/CARTON
3 CU. FT.
MEAS:
21 X 13 X 18 INCHES
______ G.W. 28LBS
______ 54
X 32 X 46 CM
______ G.W.
13KGS

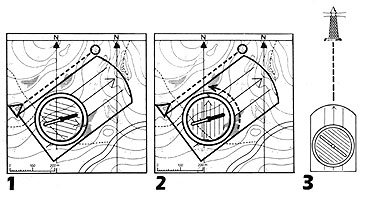

1.
Place compass on map edge along the desired line of travel.
2. Rotate the capsule until the "N" on the compass
dial points to magnetic North on the map.
3. Pick up the compass and turn your body until the red
end of the needle points to North on the compass dial. The
"direction of travel" arrow in the base now points
precisely to your destination.
Choose a landmark or a spot in this direction.
Walk to the landmark wothout looking at the compass. Choose
a new landmark and repeat the procedure until you reach
your destination.

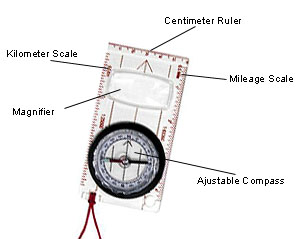

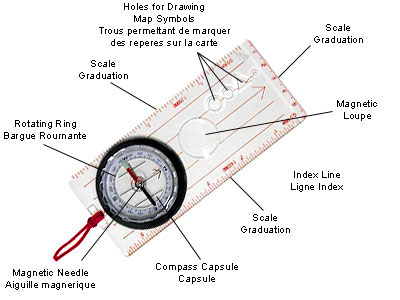

MAP READING COMPASS SIZE:
140(L) X 60(W) X 17(T)MM
N.W.: 60G
BLISTER-CARDED
1 DOZ/INNER BOX
24 DOZ/CARTON
3 CU. FT.
MEAS:
19 X 14 X 15 INCHES
______ G.W. 29LBS
______ 47
X 35 X 38 CM
______ G.W.
13KGS
AUTO COMPASS AND MAGNIFIER SIZE:
115(L) X 60(W) X 17(T)MM
N.W.: 53G
BLISTER-CARDED
1 DOZ/INNER BOX
12DOZ/CARTON
2.5 CU. FT.
MEAS:
19 X 13 X 14 INCHES
______ G.W. 29LBS
______ 47
X 32 X 36 CM
______ G.W.
13KGS
