Specifications:

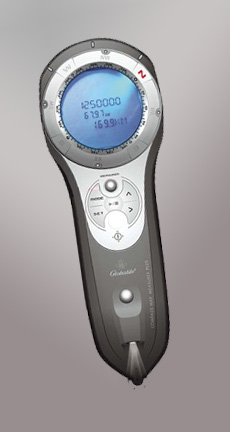

#1090 (Latest)

Versatile Digital Compass & Map Measurer

Navigation Compass

• Global Magnetic Adjustment.
• Trip Time Mode.
• Target Direction Hold Mode.
• Path Finder Mode.
• Interference Correction.
• Distortion Alert.

Digital Map Measurer

• Measure any maps (Including Street Maps).
• Preset Common Scales & Self Set Scales.
• Journey Planning (By setting the traveling time & speed).
• Find out the remaining trip time & distance at any time.
• Precisely measure 0.01 Inch / 0.025 cm.
• Measuring sound alert.

Other

• Time / Temp.
• Alarm (5 Settings).
• Stop Watch (5 Settings).
• Count Down Timer (5 Settings).
• World Time.
• 24 Hours Max & Min Temp Display.
• LCD Backlit (Power Saving Mode).
• LED Flash Light.
• Power off Function.
• Magnifier.

Saving you Time & Money
Design Registration No. 1100332.6
China Design Application No. 201130247579.9

ORIGINAL DESIGN IN HONG KONG BY NEW C & A PRACTICE INSTRUMENT CO., LTD.






Specifications:

#1050

Turn-able Compass with Ruler & Magnifier (Liquid Filled)


Liquid Filled Compass
Rota-table Dial
Magnifier
Ruler
Provided with 3 Map Scales
  1 : 25,000 (KM)
  1 : 100,000 (KM)
  1 : 63,360 (Mile)

ORIGINAL DESIGN IN HONG KONG BY NEW C & A PRACTICE INSTRUMENT CO., LTD.





Specifications:

#9707 PRC

Plastic Compass with Carabineer (Liquid Filled)


Liquid Filled Compass
Rota-table Dial
Carabineer


ORIGINAL DESIGN IN HONG KONG BY NEW C & A PRACTICE INSTRUMENT CO., LTD.





Specifications:

#2769-CM

DIGITAL MAP MEASURER WITH MAGNETIC COMPASS & MAGNIFIER

SAVING TIME & ENERGY.

REACH YOUR DESTINATION BY THE SHORTEST ROUTE.
Measure Units:
   KM, Mile & Nautical Mile 10 Standards & 1 User Input Scale For each KM, Mile & NM Mode.
Ruler Function
Unit Conversion
Count Down Timer
Liquid Filled Compass
Magnifier (3x Magnifications)
Survival Mirror

ORIGINAL DESIGN IN HONG KONG BY NEW C & A PRACTICE INSTRUMENT CO., LTD.





Specifications:

#2768

Handy Digital Map Measurer (With RoHS Compliance)

Easy to use on all maps.
KM, Mile & Nautical Mile.
   10 Standard & 1 User Input Scale for each
   measuring mode.
Conversion
   KM Mile NM,
   CM MM, M, Inch, Feet.
Count Down Timer.
Metal Wheel.
Pen Clip Design.

English, French, Japanese, Portuguese and Spanish Instructions are available.

Design in Hong Kong
Design Registration No.
HKRD0703041.6 (Hong Kong)

ZL200730298984.7(China)

The product is Original Designed and Manufactured by New C & A Practice Instrument Co., Ltd.





Specifications:

#2601

Practical Compass with Torch and Back light

Powerful Beam Torch
Patent Back Light Design
Liquid Filled Compass
With the new rotate dial design it is easy to show the direction of your destination
Batteries included

Size: 52 mm (W) x 152 mm (H) x 18 mm (D) (Carabiner Included)
Weight: 49 Grams (Carabiner Included)

Design Registration No. HKRD0601549.1
  PRC Patent Application No. 200620130658.5





Specifications:

#2501

Multi Function Path-Finder COMPASS

Liquid Filled Compass
Focus Beam Torch
Reflective Mirror and Magnifier
Flashlight Reminder
Crosshair for Target Aiming
Scaled Ruler (1 : 25000 / 1 : 633630)
Digital Time (12 / 24 Hour)
Digital Thermometer (Celsius or Fahrenheit)
Batteries Included

Size: 55 mm (W) x 90 mm (H) x 25 mm (D)
Weight: 105 Grams (Include Batteries)

Design Registration No. HKRD0603083.3 / ZL200630303328.7





Specifications:

#2308 (INCAR + OUTDOOR)
MULTI FUNCTION DIGITAL COMPASS
WITH CLOCK AND THERMOMETER

1. RESOLUTION 1 DEGREE FOR THE HEADING
2. RELATIVE POSITION FINDER
3. GO AND RETURN DIRECTION WITH TIME MEMORY FUNCTION
4. MAINTAIN BEARING RUCTION
5. BACK LIGHT LCD
6. LOW BATTERY ADVISE
7. LANYARD AND 2 X AAA BATTERIES PROVIDER

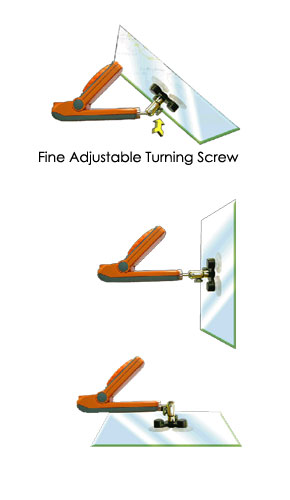

Fine Adjustable Turning Screw
- FINE ADJUSTABLE SUCTION CAP BASE
FOR UPWARD AND DOWNWARD FACING AND FOR SECURING LEVEL HORIZONTALLY WHEN MOUNTED ON ANY SLOPE FIXTURE


Please Click here to study the detailed features








Specifications:

#2309
4-in-1 Electronic Multi Function Map Measurer (with clock, thermometer and LED lamp)

1. Clock (12hrs / 24hrs) and Temperature (-5C~48C / 23F~118F)
2. Programmable scale setting and selectable unit system
Metric system (1:1 up to 1:9.999.999 KM
MILENM)
Nautical system (1:1000 up to 1:9.999.999 NM
KMMILE)
Imperial system (1/inch : 1 mile up to 999 miles, MILE
KMNM)
Ruler function (MM / INCH
CMM FEET )
Scale Line & Conceivable Scale (0.1 up to 9.99 inch/cm : 1 up to 999 Miles/KM)
Travel planning function (distance, speed & journey time calculation)
Adding & subtracting distance in map measuring and travel planning
12 different scale setting memory storage
3. LCD Display with LED illumination
4. Front LED for illumination
5. 2 x 1.5V AAA Battery

Design Registration No. 0311623.7





Specifications:


#2168


PLASTIC COMPASS WITH Metal Key-holder

SIZE:DIA 50mm
Nw. : 34G
Bulk pack
25pcs / Inner Box
250pcs / Carton Box

2 CU. FT
MEAS: 16 X 15 X 11" ___G.W.: 25LBS
____¡@_41 X 38 X 27 CM ___¡ G.W.:
11.5 KGS







Specifications:

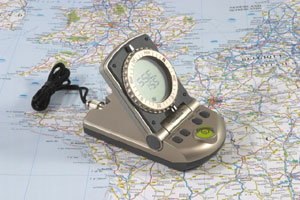

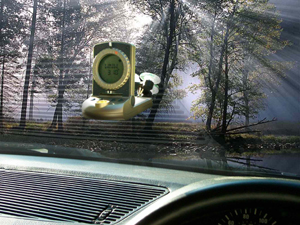

#2111
Digital compass (Incar+outdoor)

SIZE:60 x 110 x 28(H) mm
EACH IN A COLOUR BOX
6pcs / Inner Box
60pcs / Carton Box

MEAS: 34.3 x 52 x 62.3"
G.W.: 15.5KGS
NW.: 14.5KGS

[ CLICK HERE TO SEE E-CATALOGUE ]








Specifications:


#2040

PLASTIC Map Compass with Measurer and Magnifier
SIZE: 66(L) X 40(W) X 10(T) MM
3X Magnifier : 15 mm Dia
G.W.: 15G
LIQUID FILLED
COLOUR: TRANSPARENT

COMPASS DIA: 35MM
**Other colour version of printing on the
**dial of the compass is available
BLISTER-CARDED
1 DOZ / INNER BOX
36 DOZ / CARTON
4.4 CU.FT.
MEAS: 24 X 12 X 26 INCHES G.W.: 35LBS
_____:60 X 30 X 66 CM____G.W.: 16KGS







Specifications:


#8412T

PLASTIC COMPASS WITH STRAP
SIZE: 44.5 MM(DIA.) X 9 MM(T)
G.W.: 18G
LIQUID FILLED
COLOUR: TRANSPARENT

COMPASS DIA. 45MM
BLISTER-CARDED
1 DOZ / INNER BOX
36 DOZ / CARTON
4.4 CU.FT.
MEAS: 24 X 12 X 26 INCHES G.W.: 35LBS
______ 60 X 30 X 66 CM ___G.W.: 16KGS





Specifications:

#2249


ALLOY COMPASS

(For Finding Real Position On Map)
BUBBLE BAG EACH
SIZE: 49MM DIAMETER
25 PCS PER INNER BOX
250 PCS PER CARTON
MEAS. 42X 29.3 X 38CM
G.W.: 24KGS

N.W.: 23KGS
MATERIAL: ALLOY CASE



DIRECTIONAL COMPASS

Place the compass on the map at your current position, and rotate the compass until the red needle is pointing to "N" on the compass dial. Rotate the map until its orientation matches the compass.



To find out the direction to the destination rotate the top part of the compass so that the green line points to the place of destination on the map. Read the direction in degrees from the dial below the green line.









;
